# Tutorial 2: Creating Library Objects in Dietrich's

### Creating Drawing Section Library Objects

#### Step-by-Step Process:

1. Draw the object you want to save to the library
   * Create all components with appropriate properties
   * Set correct layers, line types, and colors

2. Access the library function:
   * Navigate to `1 File → 5 Libraries → 1 Object`

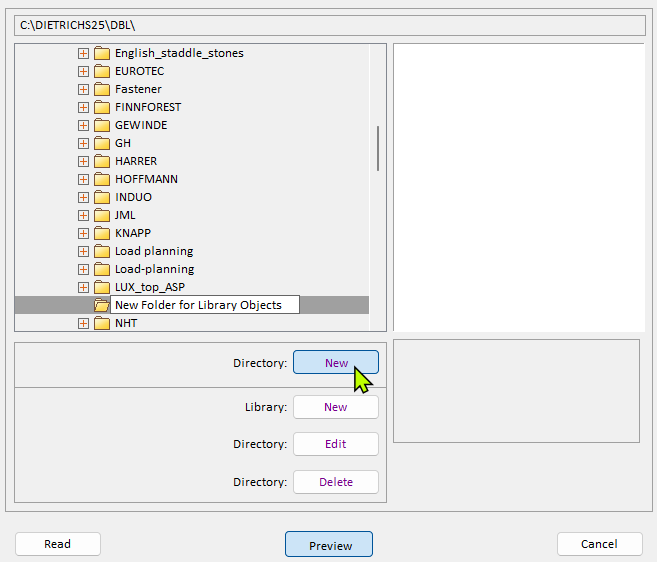

3. Create a folder for your objects:
   1\.

   ```
   <figure><img src="https://1589690351-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FJwVNn4I5lBr9h9dnVyjh%2Fuploads%2FkUw9cFUbmMZLQwxVxFLn%2Fimage.png?alt=media&#x26;token=c3e367f5-37d3-4e8e-937f-53d29075abab" alt="" width="329"><figcaption></figcaption></figure>
   ```

4. Create the library object:
   * Click the lower "new" button to create a new drawing section
   * Select the components to be saved in the library
   * Click the right mouse button to end selection
   * Name the library object descriptively (e.g., "7 inch 45 degree 26 inches out of corner")

5. Save and exit:
   * Click the "Quit" button to complete the process
